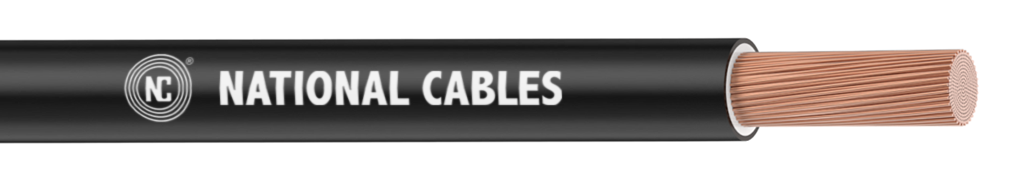

FLEXIBLE COPPER CABLE – PVC INSULATED FLAME RETARDANT (FR)

Application

  • Residential & Commercial Buildings – Houses, apartments, offices, malls.
  • Industrial & Manufacturing Units – Factories, hospitals, control panels.
  • Power & Backup Systems – UPS systems, inverters, battery banks.

Technical Data

  • Approvals: IS 694 marked, FIA/TAC
  • Voltage Grade: Up to and including 1100V
  • Conductor: Thin strands of electrolytic copper are multi-drawn for uniformity of resistance, dimension and flexibility. The strands are twisted with high precision to impart circularity for the conductor
  • Insulation: Specially formulated flame retardant PVC insulation is used. The FR property retards the propagation of flame without compromising safety
  • Insulation Conformity: IS 5831, Type A/D FR 70°C

Colors & Packaging

  • Colours: Red, yellow, blue, black, green, grey & white

  • Standard Packaging:

    • 6 sqmm and above – Supplied in 100-meter coils.

    • 75 sqmm to 6 sqmm – Supplied in 90-meter coils.

CABLE CONSUTRUCTION
Conductor Electrolytic Grade Bare Annealed Copper
Insulation High-Durability FR Grade Lead-free PVC
Standard IS 694:2010
Sizes 0.5 Sq.mm to 240 sq.mm

SINGLE CORE, UNSHEATED CABLES IN VOLTAGE GRADE 1100V AS PER IS 694:2010

Nominal Cross Sectional Area (sq.mm) Nominal Insulation Thickness (mm) Approx. Overall Diameter (mm) Current Rating (Amps) – In Conduit/Trunking Current Rating (Amps) – Unenclosed/Clipped Directly to a Surface or on Cable Tray Max Resistance @ 20°C (Ohm/km)
0.5 0.6 2.25 4 5 39.0
0.75 0.6 2.40 7 8 26.0
1.0 0.6 2.60 11 12 19.5
1.5 0.6 2.90 13 16 13.3
2.5 0.7 3.60 18 22 7.98
4.0 0.8 4.30 24 29 4.95
6.0 0.8 4.90 31 37 3.30
10 1.0 6.3 42 51 1.91
16 1.0 7.7 57 68 1.21
25 1.2 9.6 71 86 0.780
35 1.2 10.9 91 110 0.554
50 1.4 12.9 120 145 0.386

Additional Variants

  • FRLS

  • LSZH
